Vito Tourer
Features
The Vito Tourer at a glance
In the Vito Tourer, you and optionally 8 passengers enjoy a comfortable ride in everyday life or on longer journeys.

Embodies adaptability
The Mercedes-Benz Vito Tourer: Choose from different vehicle lengths, diesel engines and a petrol engine, rear wheel drive or permanent all-wheel drive.

Streamlined Design
Robust Appeal
The Vito Tourer features a sleek design, easy operation, striking grille, MULTIBEAM LED headlamps, a choice of paint finishes and alloy wheels.
The exterior of the Vito Tourer
Customize the Vito Tourer according to your expectations with a large selection of paints and wheels. Choose from various rear door options and sliding doors and adapt the Vito Tourer to your everyday needs. Discover equipment highlights such as the MULTIBEAM LED headlamps with High Beam Assist Plus or the Parking Package with 360° camera, which makes the area around the vehicle visible thanks to 3D Surround View. Further equipment highlights, such as the EASY-PACK package, support you when loading and unloading as well as when entering or exiting the vehicle as it opens or closes the respective door or tailgate automatically at the touch of a button.

Sliding doors
The standard sliding door on the right and the optional sliding door on the left side of the vehicle offer additional access to the vehicle and greater flexibility.

MULTIBEAM LED headlamps with High Beam Assist Plus
The adaptive headlamps adjust to the current traffic situation with the help of individually controllable LEDs and illuminate the road effectively thanks to intelligent light functions.

BASE
Contains, among other things, the following exterior features:
- 43.2 cm (17 inch) steel wheels 6.5 J x 17
- 70-litre main tank
- Driving Light Assist incl. Rain Sensor
- Hill-Start Assist
ATTENTION ASSIST - Tow bar

PRO
Contains the features of the Vito Tourer BASE, as well as, among other things, the following exterior features:
- Full wheel cover
- 70-litre main tank
- Electrics for trailer plug-in socket
The interior of the Vito Tourer
The interior of the Vito Tourer is characterised by highlights such as the MBUX multimedia system, the multifunction steering wheel, comfortable and ergonomic seats, as well as its wide range of passenger compartment seating options. Up to 9 people can be comfortably accommodated in the Vito Tourer and many storage options create additional space – Design the passenger compartment according to your individual needs.

MBUX multimedia system with 26.04 cm (10.25″) touchscreen
Experience MBUX: the intelligent multimedia system from Mercedes-Benz with expandable interfaces, and advanced features.

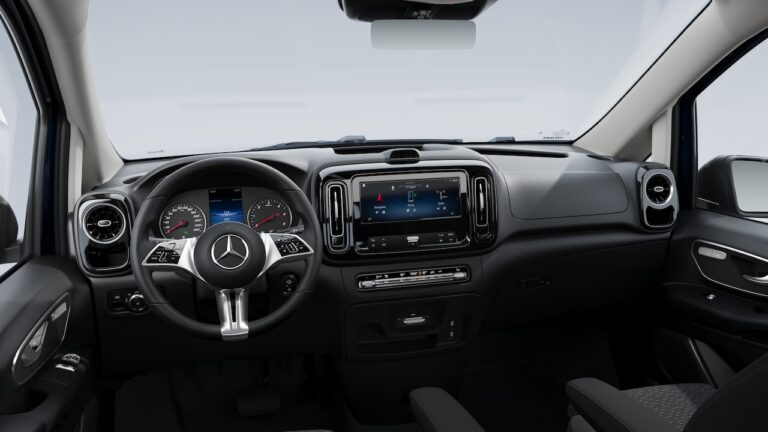

The driver's compartment of the Vito Tourer
Stowage compartments, the multifunction steering wheel, the instrument cluster with color display and MBUX characterize the Vito’s interior.

BASE
Contains, among other things, the following interior features:
- MBUX multimedia system with 26.04 cm (10.25-inch) touchscreen
- Instrument cluster with colour display
- Multifunction steering wheel with touch controls, adjustable in inclination and height
- Cruise Control
- TEMPMATIC semi-automatic air conditioning
- Pre-installation for navigation
- Lockable glove box
- Two-way speakers, front & Rear
- Mercedes-Benz emergency call system
- Tow bar
- Heated Exterior mirror
- 43.2 cm (17-inch) steel wheels 6.5 x 17
- Hill-Start Assist
- Heated Exterior mirror
- Centre console stowage

PRO
Contains the features of the Vito Tourer BASE as well as, among other things, the following interior features:
- Comfort suspension seat for driver & front passenger
- Lumbar support for driver & front passenger seat
- Seat cushion length adjustment for driver & front passenger
- Double cupholder, centrally located in cockpit
The equipment highlights of the Vito Tourer
Discover available equipment highlights for the Vito Tourer, e.g. the Digital Rear-View Mirror, which uses a camera to display a live feed of the road behind, providing a clear view unobstructed by passengers. Learn more about the Vito Tourer’s permanent all-wheel drive and AIRMATIC air suspension. Easily connect your smartphone with the Smartphone Integration package. Always keep an eye on your Vito Tourer, even when it’s not in sight – with our Digital Extras.

Lumbar support for driver and front passenger seats
The 4-way lumbar support supports the vertebrae in the lumbar area and relieves back strain. This is especially pleasant on long journeys. 2 air cushions in the seat backrest of the comfort seat can be individually adjusted to the needs of the driver or front passenger and thus support an ergonomic sitting posture.

TEMPMATIC semi-automatic air conditioning
The TEMPMATIC semi-automatic air-conditioning system increases the feeling of well-being with a pleasant temperature in the vehicle interior and makes an important contribution towards driver fitness. The air-conditioning system regulates the interior temperature automatically.

Acoustic Package
With the Acoustic Comfort Package you improve the level of noise in the vehicle interior and therefore heighten the driving comfort experience. To this end, the doors are provided with additional insulation, sound-proofing and sealing and the drivetrain is optimised to reduce vibration.

Comfort suspension seat for driver and front passenger, swivelling The swivelling
comfort suspension seat offers more than just pleasant seating comfort during travelling: when the vehicle is stationary, it can be flexibly swivelled. For example by 180°, to a communicative position face-to-face with the passengers in the rear seat row. If the seat is turned by up to 50° to the door, exiting is made easier.

MBUX multimedia system
Operation of your MBUX multimedia system is easy and intuitive. It is operated via the high-resolution 10.25-inch touchscreen, the touch control panels on the steering wheel. In addition, you can individualise the infotainment menu and arrange the tiles according to your personal preferences – just like on your smartphone.

Pre-installation: Remote Services Plus
With the pre-installation for Remote Services Plus, you are given the opportunity to make even better and more flexible use of your vehicle. With this, you can use a wide range of Mercedes me connect services that make your everyday life with the vehicle safer, more comfortable, easier to plan and consequently more efficient as well.

Mercedes-Benz emergency call system
The Mercedes-Benz emergency call system can ensure crucial time savings in an emergency. Using a communication module with its own SIM card, an automatic emergency call is initiated following an accident, thereby potentially reducing the time before the emergency services arrive at the scene. The emergency call can also be initiated manually in order to request help.

Pre-installation for navigation
Your vehicle comes prepared with the pre-installation for Mercedes-Benz navigation system. This allows you to remain flexible and decide at a later date whether you want to be guided to your destination using intelligent hard disc navigation.
Manual Technical Data
All technical data (Long, Manual)
| All technical data | 114 CDI |
|---|---|
| Vehicle Dimensions | |
| Vehicle Length | 5 140 mm |
| Vehicle Height | 1 910 mm |
| Vehicle Width | 2 244 mm |
| Vehicle Width with Mirrors folded | 2 060 mm |
| Wheelbase | 3 200 mm |
| Loading Space Dimensions | |
| Max. Loading Space Length | 3 678 mm |
| Loading Space Height | 1 326 mm |
| Loading Space Width Max | 1 685 mm |
| Loading Space Width Min | 1 205 mm |
| Weights | |
| Permissible Gross Vehicle Weight | 3 200 kg |
| Unbraked Towing Capacity | 750 kg |
| Body | |
| Number of Doors | 4 |
| Number of Seats installed | 8 |
| CO2 emission (combined operation) | |
| Emissions standard | Euro 6 Gr. I |
| Fuel delivery | Diesel |
| Transmission | 6-speed manual TSG 380 (GE1) |
| Engine Type | |
| Engine size | 1 950 cm3 |
| Torque (Nm) | 330 Nm |
| Power (kW) | 100 kW |
| Power (PS) | 136 PS |
| Top speed | 183 km/h |
Automatic Technical Data
All technical data (Long, Automatic)
| All technical data | 114 CDI | 116 CDI | 119 CDI |
|---|---|---|---|
| Vehicle Dimensions | |||
| Vehicle Length | 5 140 mm | 5 140 mm | 5 140 mm |
| Vehicle Height | 1 890 mm | 1 890 mm | 1 890 mm |
| Vehicle Width | 2 244 mm | 2 244 mm | 2 244 mm |
| Vehicle Width with Mirrors folded | 2 060 mm | 2 060 mm | 2 060 mm |
| Wheelbase | 3 200 mm | 3 200 mm | 3 200 mm |
| Loading Space Dimensions | |||
| Max. Loading Space Length | 3 678 mm | 3 678 mm | 3 678 mm |
| Loading Space Height | 1 326 mm | 1 326 mm | 1 326 mm |
| Loading Space Width Max | 1 685 mm | 1 685 mm | 1 685 mm |
| Loading Space Width Min | 1 552 mm | 1 552 mm | 1 552 mm |
| Weights | |||
| Permissible Gross Vehicle Weight | 3 200 kg | 3 200 kg | 3 200 kg |
| Unbraked Towing Capacity | 750 kg | 750 kg | 750 kg |
| Body | |||
| Number of Doors | 4 | 4 | 4 |
| Number of Seats installed | 8 | 8 | 8 |
| CO2 emission (combined operation) | |||
| Emissions standard | Euro 6 Gr. I | Euro 6 Gr. I | Euro 6 Gr. I |
| Fuel delivery | Diesel | Diesel | Diesel |
| Transmission | 9G-TRONIC (G43) | 9G-TRONIC (G43) | 9G-TRONIC (G43) |
| Engine Type | |||
| Engine size | 1 950 cm3 | 1 950 cm3 | 1 950 cm3 |
| Torque (Nm) | 330 Nm | 380 Nm | 440 Nm |
| Power (kW) | 100 kW | 120 kW | 140 kW |
| Power (PS) | 136 PS | 163 PS | 190 PS |
| Top speed | 183 km/h | 195 km/h | 205 km/h |
